Danso Eutectic System

OUR PRODUCTS

About Danso Eutectic System

Danso’s newest model line-up—Danso Eutectic System allows temperature to go as low as -40 degrees celsius. Such systems are commonly deployed in the transportation of frozen products such as ice-cream.

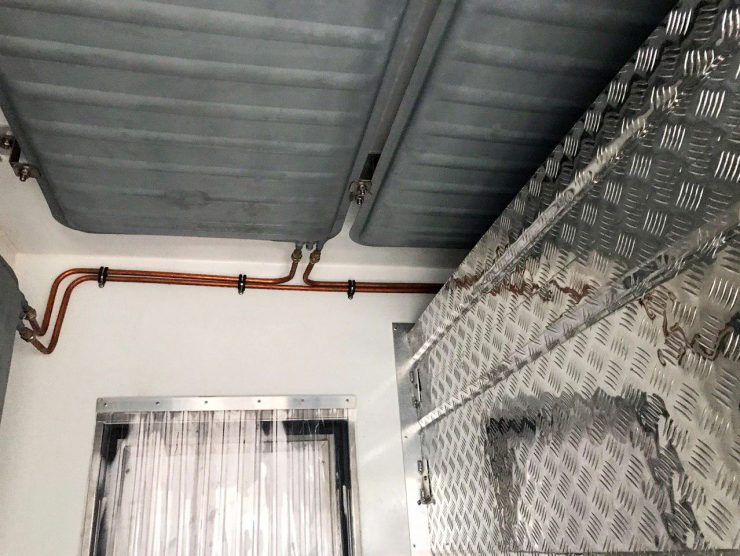

Danso Eutectic System uses Eutectic Plates containing a mixture of different types of gel that freezes and melts at a very low temperature. This allows the system to sustain a very low temperature within a contained area for a very long period of time. Pairing the system with our insulated containers, we are able to provide our customers with the best transport refrigeration for products requiring low temperatures.

DANSO EUTECTIC SYSTEM

Danso

Technical Specification

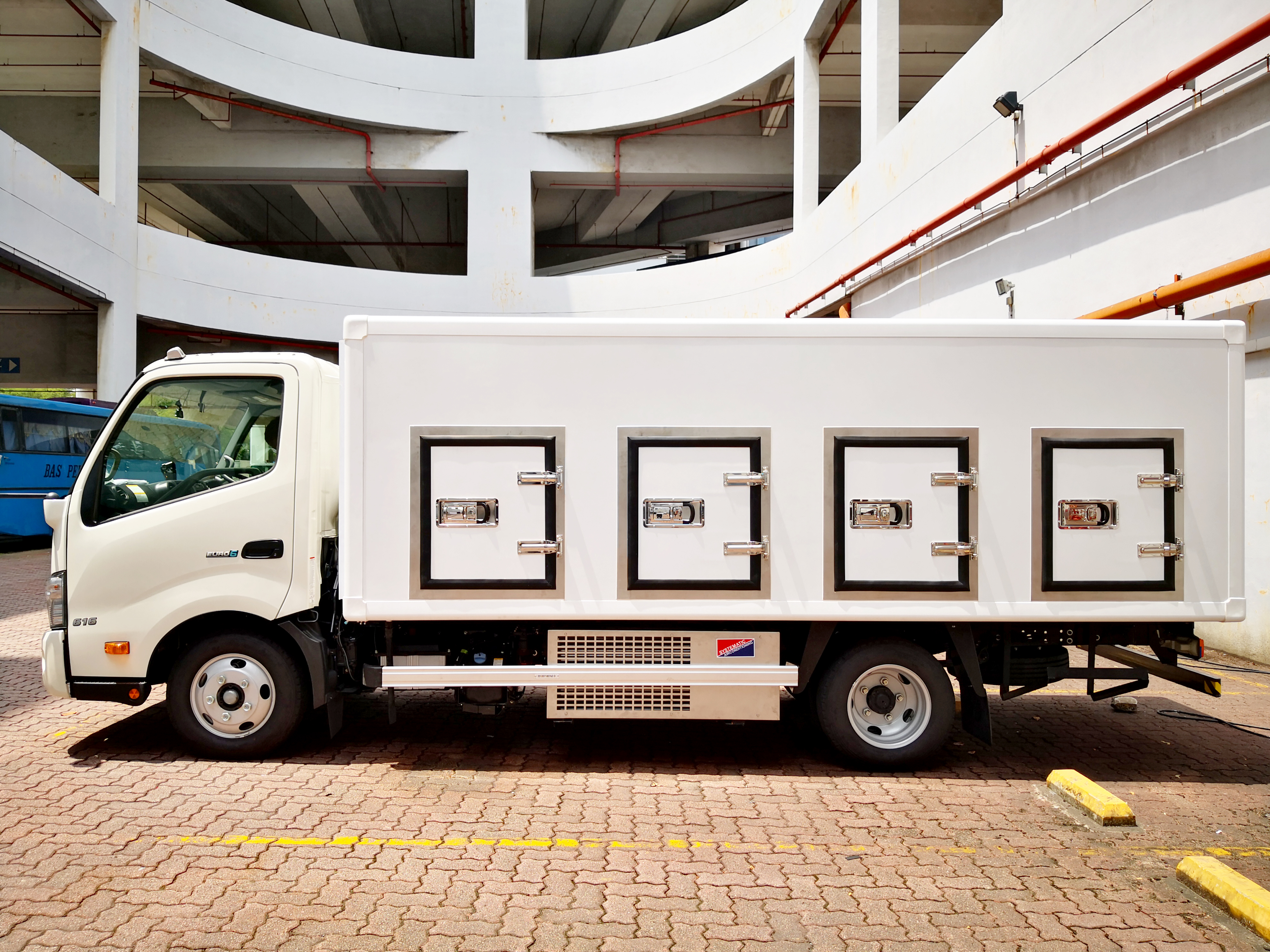

Danso Eutectic System Ideal For Ice Cream Transportation
DANSO EUTECTIC SYSTEM DU 101
1.0(ton)
DU 142
2.5(ton)
DU 163
3.5(ton)
DU 205
5.0(ton)
DU 258
8.0(ton)
Box Size in (mm) 3.2(L) x 1.8(W) x 1.5(H) 34.4(L) x 2.0(W) x 1.7(H) 4.8(L) x 2.0(W) x 2.0(H) 6.5(L) x 2.5(W) x 2.2(H) 7.5(L) x 2.5(W) x 2.2(H)
Insulation thickness XPS 100mm XPS 100mm XPS 125mm XPS 150mm XPS 150mm

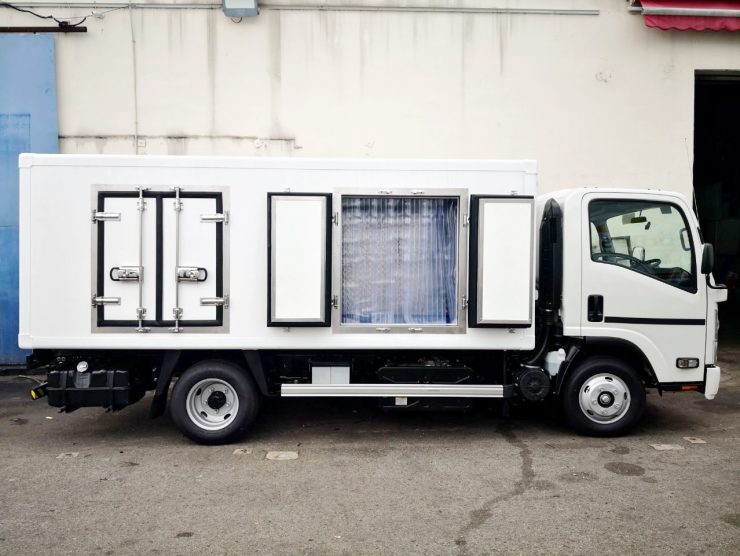

Side door 6 doors 6 doors 8 doors 3 doors 3 doors

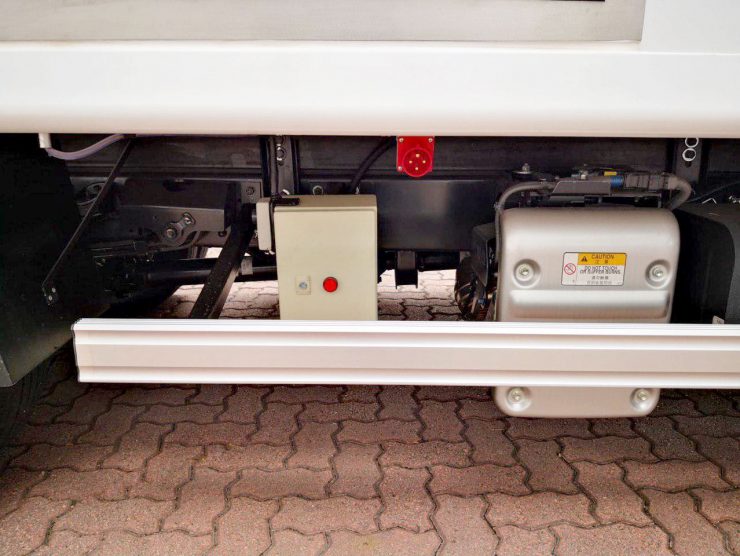

Condensing unit Under mount Under mount Under/front mount Under/front mount Under/front mount
Electric power (watts) 380V / 3ph / 50Hz
2.2KW
380V / 3ph / 50Hz
2.2KW
380V / 3ph / 50Hz
2.2KW
380V / 3ph / 50Hz
2.2KW
380V / 3ph / 50Hz
2.2KW
Plate size in mm
(aluminium alloy)
600 x 1800 x 50
6 nos. 9 nos. 11 nos. - -
Plate size in mm
(aluminium alloy)
600 x 2000 x 50
- - - 12 nos. 14 nos.
Compressor type Semi hermetic Semi hermetic Hermetic scroll/Semi hermetic Hermetic scroll/Semi hermetic Hermetic scroll/Semi hermetic
Refrigeration gas R404a/3kg R404a/4kg R404a/4.5kg R404a/7kg R404a/8.5kg
Gel freezing temperature -35ºC -35ºC -35ºC -35ºC -35ºC
